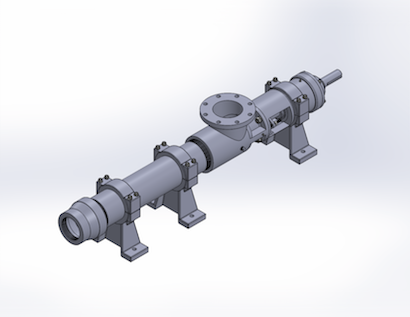

2CL10H Progressive Cavity Pump

Model CL Pumps are suitable for a wide variety of applications and are the most frequently used. When properly applied they give excellent long life performance at the most economical cost. Hydraulic motor option is also available.

The rotor and stator is available in 1, 2 and 3 stages.

Continental CL Model pumps and parts are interchangeable with many progressing cavity pump brands.

Need a complete unit on an inline base, a v-belt base or as a hydraulic unit?  Contact us.

Pumps:

Pump ModelYour PricePump Description
2CL10H-CDB CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CDF CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CDQ CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CDR CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CSB CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CSF CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CSQ CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-CSR CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-SSB CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-SSF CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-SSQ CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
2CL10H-SSR CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
Pump Frame Size: CL10H Inlet Suction Size: 6 in. NPT
Outlet Discharge Size: 5 in. NPT Body Casting Material Options Cast Iron, 316 Stainless Steel
Pump Rotor Material: Chrome Plated Alloy Steel, Chrome Plated 304 Stainless Steel Stator Material Options: Buna Nitrile, Natural Rubber, EPDM, Viton
Seal Material Options: Mechanical, Packing Pump Motor Options: Varies
Flowrate: 64 - 210 GPM Pressure: 0 - 150 PSI
Weights: 412 - 545 Lbs.



  • Only One Moving Part
  • Low Cost
  • Interchangeable Parts with Popular Progressing Cavity Pump Brands
  • Light Duty Applications
  • Various Motor and Drive Combinations



More Dimensions and Weights information can also be found on the CL Progressive Cavity Pump page in the Resources area.
