CPM33 Progressive Cavity Pump

Model CP Pumps are great for low GPM and viscosity applications and can pump many different types of materials. It’s a low cost pump that is compact and has many drive options.

Continental CP Model pumps and parts are interchangeable with many progressing cavity pump brands.



Need a complete unit on an inline base, a v-belt base or as a hydraulic unit?  Contact us.







Pumps:

Pump ModelYour PricePump Description

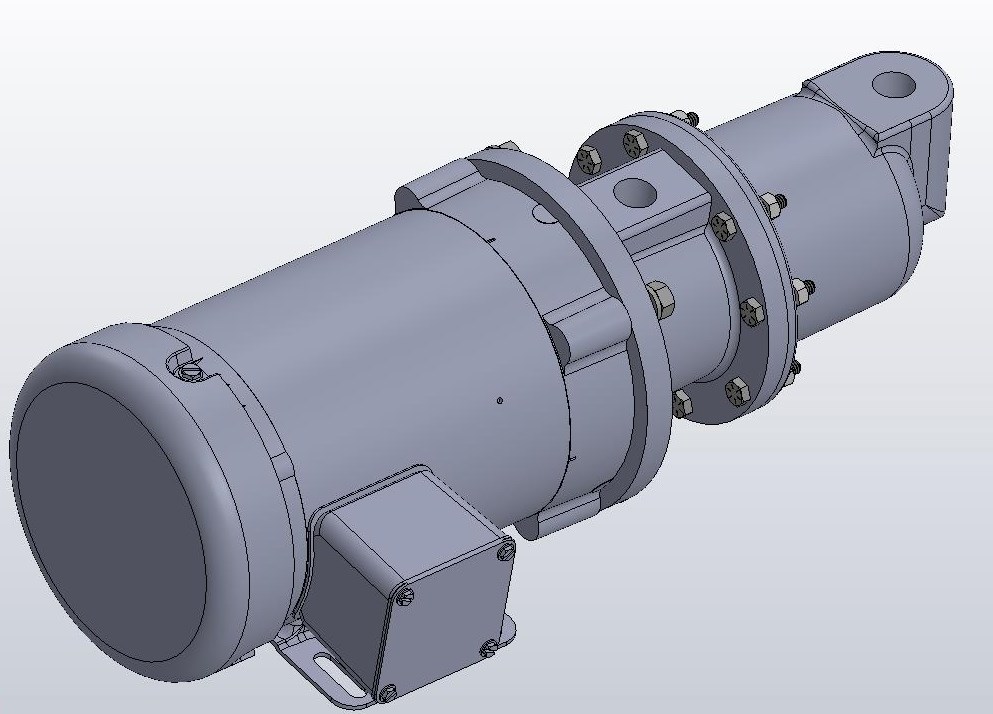

CPM33-CSBMPV CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, EDPM elastomers, Mechanical Seal, Pinned flex joint and connections, 1/2 hp motor, 3 phase TEFC 34G50-872
CPM33-CSFMPV CALL FOR PRICE CONTINENTAL PUMP-Vertical Cast iron hsg, Stainless steel internals, Viton elastomers, Mechanical Seal, Pinned flex joint and connections, 1/2 hp motor, 3 phase TEFC 34G50-872
CPM33-CSQMPV CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, Buna elastomers, Mechanical seal, Pinned flex joint and connections, 1/2 hp motor, 3 phase TEFC 34G50-872

Net Adders:

Pump ModelBase Price Viton
CPM33-CSFMPV CALL FOR PRICE CALL FOR PRICE
Pump Frame Size: CP33 Inlet Suction Size: 3/4 in. NPT
Outlet Discharge Size: 3/4 in. NPT Body Casting Material Options Cast Iron
Pump Rotor Material: Chrome Plated Stainless Steel Stator Material Options: Buna Nitrile, Viton, EPDM
Seal Material Options: Mechanical Pump Motor Options: Varies
Flowrate: .9 - 9.4 GPM Pressure: 0 - 50 PSI
Weights: 48 lbs
  • Only One Moving Part
  • Low Cost
  • Compact
  • Small Mounting “Foot Print”
  • Light Duty Applications
  • Various Motor and Drive Combinations

More Dimensions and Weights information can also be found on the CP Progressing Cavity Pump page in the Resources area.



















CPM33



if it will push through pipe,
you can pump it with
continental ultra pumps
Asphalt
Animal Waste, Fat & Blood
Beverages
Crude Oil
Cement
Coolant
Feed
Fuels
Fertilizers
Food Waste
Glue
Gun Coatings
Grease
Paint
Pulp & Paper
Packaging
Pharmaceuticals
Sewage
Slury
Water & Waste Water
And Much More...
