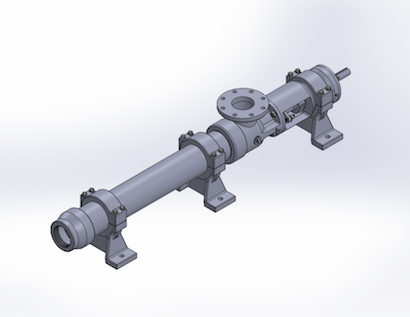

3CL8 Progressive Cavity Pump

Model CL Pumps are suitable for a wide variety of applications and are the most frequently used. When properly applied they give excellent long life performance at the most economical cost. Hydraulic motor option is also available.

The rotor and stator is available in 1, 2 and 3 stages.

Continental CL Model pumps and parts are interchangeable with many progressing cavity pump brands.

Need a complete unit on an inline base, a v-belt base or as a hydraulic unit?  Contact us.

Pumps:

Pump ModelYour PricePump Description
3CL8-CDB CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CDF CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CDQ CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CDR CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, CARBON STEEL INTERNALS, CHROME-PLATED ALLOY STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CSB CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CSF CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CSQ CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-CSR CALL FOR PRICE CONTINENTAL PUMP-CAST IRON HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-SSB CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, EPDM ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-SSF CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, VITON ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-SSQ CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, BUNA ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
3CL8-SSR CALL FOR PRICE CONTINENTAL PUMP-STAINLESS STEEL HSG, STAINLESS STEEL INTERNALS, CHROME-PLATED STAINLESS STEEL ROTOR, NATURAL RUBBER ELASTOMERS, PACKED SEAL WITH PINNED CONNECTIONS
Pump Frame Size: CL8 Inlet Suction Size: 4 in. NPT
Outlet Discharge Size: 4 in. NPT Body Casting Material Options Cast Iron, 316 Stainless Steel
Pump Rotor Material: Chrome Plated Alloy Steel, Chrome Plated 304 Stainless Steel Stator Material Options: Buna Nitrile, Natural Rubber, EPDM, Viton
Seal Material Options: Mechanical, Packing Pump Motor Options: Varies
Flowrate: 18 - 100 GPM Pressure: 0 - 225 PSI
Weights: 303 - 372 Lbs.



  • Only One Moving Part
  • Low Cost
  • Interchangeable Parts with Popular Progressing Cavity Pump Brands
  • Light Duty Applications
  • Various Motor and Drive Combinations

More Dimensions and Weights information can also be found on the CL Progressing Cavity Pump page in the Resources area.

 CLCL8

if it will push through pipe,
you can pump it with
continental ultra pumps
Asphalt
Animal Waste, Fat & Blood
Beverages
Crude Oil
Cement
Coolant
Feed
Fuels
Fertilizers
Food Waste
Glue
Gun Coatings
Grease
Paint
Pulp & Paper
Packaging
Pharmaceuticals
Sewage
Slury
Water & Waste Water
And Much More...
