CPM22 Progressive Cavity Pump



Model CP Pumps are great for low GPM and viscosity applications and can pump many different types of materials. It’s a low cost pump that is compact and has many drive options.

Continental CP Model pumps and parts are interchangeable with many progressing cavity pump brands.



Need a complete unit on an inline base, a v-belt base or as a hydraulic unit?  Contact us.





Pumps:

Pump ModelYour PricePump Description

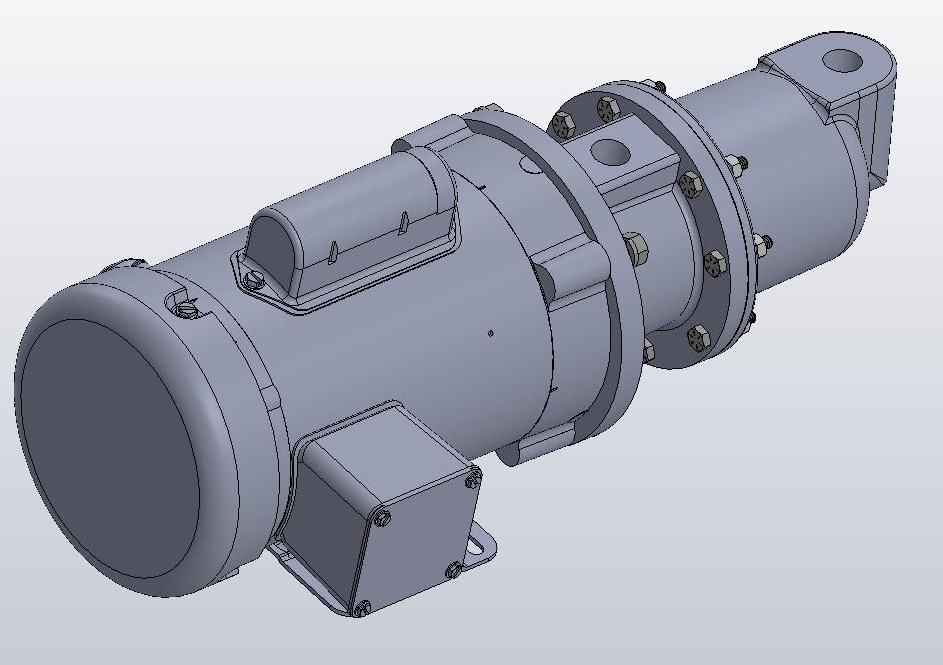

CPM22-CSBMTV CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, EDPM elastomers, Mechanical Seal, Threaded flex joint and connections, 1/2 hp motor, Single phase TEFC 34G405-5593
CPM22-CSFMTV CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, Viton elastomers, Mechanical seal, Threaded flex joint and connections, 1/2 hp motor, Single phase TEFC 34G405-5593
CPM22-CSQMTV CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, Buna elastomers, Mechanical Seal, Threaded flex joint and connections, 1/2 hp motor, Single phase TEFC 34G405-5593

Net Adders:

Pump ModelBase Price Viton
CPM22-CSFMTV CALL FOR PRICE CALL FOR PRICE
Pump Frame Size: CP22 Inlet Suction Size: 3/4 in. NPT
Outlet Discharge Size: 3/4 in. NPT Body Casting Material Options Cast Iron
Pump Rotor Material: Chrome Plated Stainless Steel Stator Material Options: Buna Nitrile, Viton, EPDM
Seal Material Options: Mechanical Pump Motor Options: Varies
Flowrate: .4 - 4.9 GPM Pressure: 0 - 100 PSI
Weights: 48 lbs
  • Only One Moving Part
  • Low Cost
  • Compact
  • Small Mounting “Foot Print”
  • Light Duty Applications
  • Various Motor and Drive Combinations

More Dimensions and Weights information can also be found on the CP Progressing Cavity Pump page in the Resources area.

































CPM22





if it will push through pipe,
you can pump it with
continental ultra pumps
Asphalt
Animal Waste, Fat & Blood
Beverages
Crude Oil
Cement
Coolant
Feed
Fuels
Fertilizers
Food Waste
Glue
Gun Coatings
Grease
Paint
Pulp & Paper
Packaging
Pharmaceuticals
Sewage
Slury
Water & Waste Water
And Much More...
