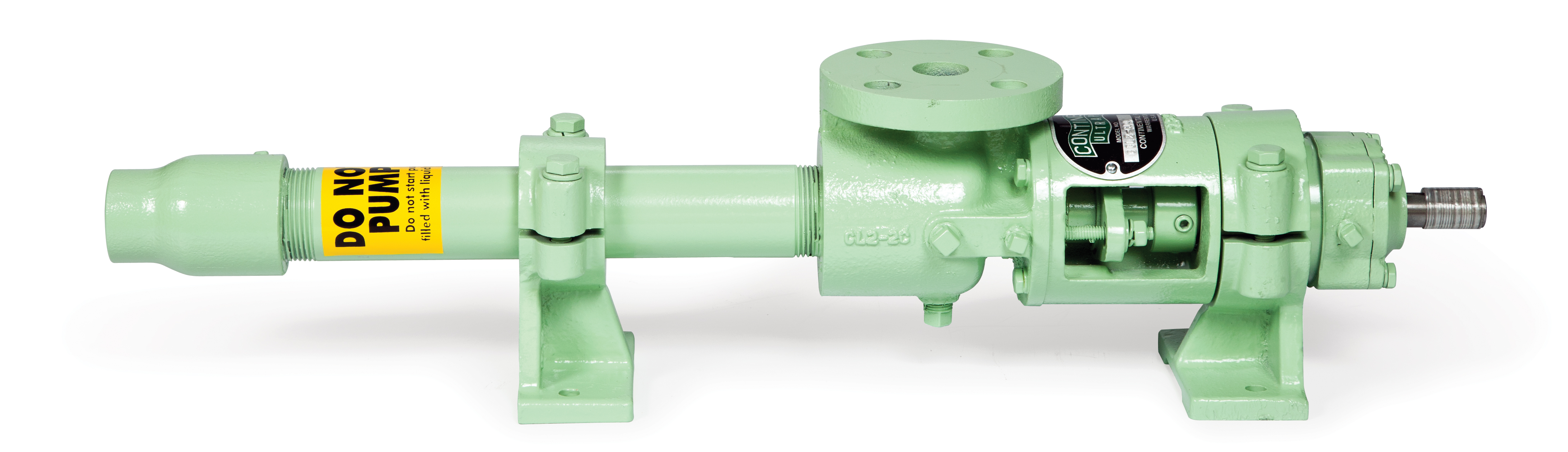

CL2 Progressing Cavity Pump
Model CL Pumps are suitable for a wide variety of applications and are the most frequently used. When properly applied they give excellent long life performance at the most economical cost. Hydraulic motor option is also available.
The rotor and stator is available in 1, 2 and 3 stages.
Continental Pump CL Model pumps and parts are interchangeable with many progressing cavity pump brands.
Need a complete pump on an inline base, a v-belt base or as a hydraulic unit? Contact us.
| Pump Frame Size: CL2 | Inlet Suction Size: 1 in. NPT |
| Outlet Discharge Size: 3/4 in. NPT | Body Casting Material Options Cast Iron, 316 Stainless Steel |
| Pump Rotor Material: Chrome Plated Alloy Steel, Chrome Plated 304 Stainless Steel | Stator Material Options: Buna Nitrile, Natural Rubber, EPDM, Viton |
| Seal Material Options: Packing | Pump Motor Options: Varies |
| Flowrate: .4 - 3.0 GPM | Pressure: 0 -180 PSI |
| Weights: 22 - 31 Lbs. |
- Only One Moving Part
- Low Cost
- Interchangeable Parts with Popular Progressing Cavity Pump Brands
- Light Duty Applications
- Various Motor and Drive Combinations
More Dimensions and Weights information can also be found on the CL Progressing Cavity Pump page in the Resources area.
