CG12 & CG12H
|

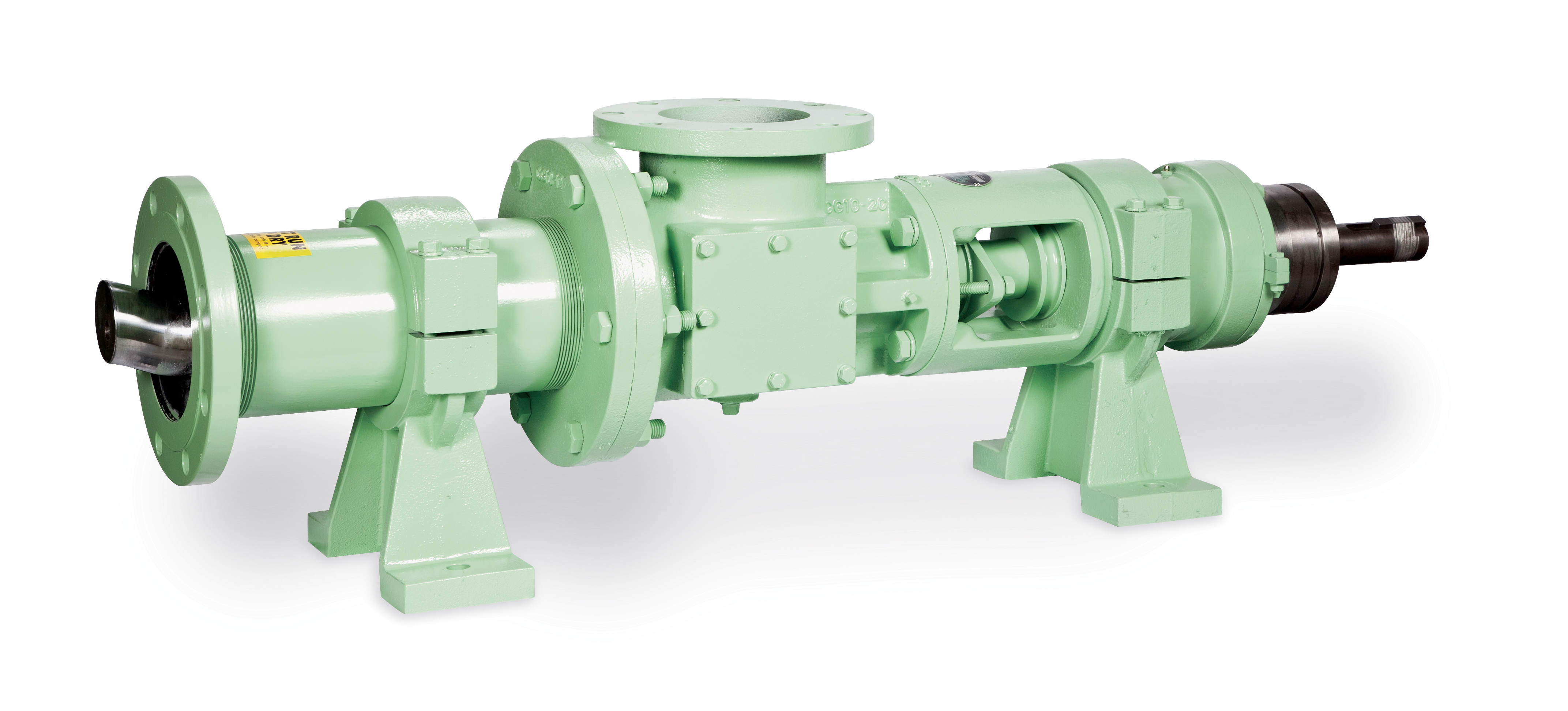

CG12 & CG12H Progressing Cavity Pump
This Model is designed to handle the heavier applications of sewage, industrial waste, polluted liquids, and slurries. Incorporated into this more rugged pump is a unique drive train using gear joint connections to the rotor and drive shaft.
The rotor and stator is available in 1, 2 and 3 stages, with the exception of the 10H which is only available in 1 and 2 stages.
Continental Pump CG Model pumps and parts are interchangeable with many progressing cavity pump brands.
Need a Complete Pump on an In Line Base or V-Belt Base or as a Hydraulic Unit.? Contact us.
| Pump Frame Size: CG12 & CG12H | Inlet Suction Size: 6 in. NPT |
| Outlet Discharge Size: 5 in. NPT | Body Casting Material Options Cast Iron, 316 Stainless Steel |
| Pump Rotor Material: Chrome Plated Alloy Steel, Chrome Plated 304 Stainless Steel | Stator Material Options: Buna Nitrile, Natural Rubber, EPDM, Viton |
| Seal Material Options: Mechanical, Packing | Pump Motor Options: Varies |
| Flowrate: 21 - 253 GPM | Pressure: 0 -150 PSI |
| Weights: 450 - 596 lbs. |
- Only One Moving Part
- Low Cost
- Interchangeable Parts with Popular Progressing Cavity Pump Brands
- Light Duty Applications
- Various Motor and Drive Combinations
More Dimensions and Weights information can also be found on the CG Progressing Cavity Pump page in the Resources area.
