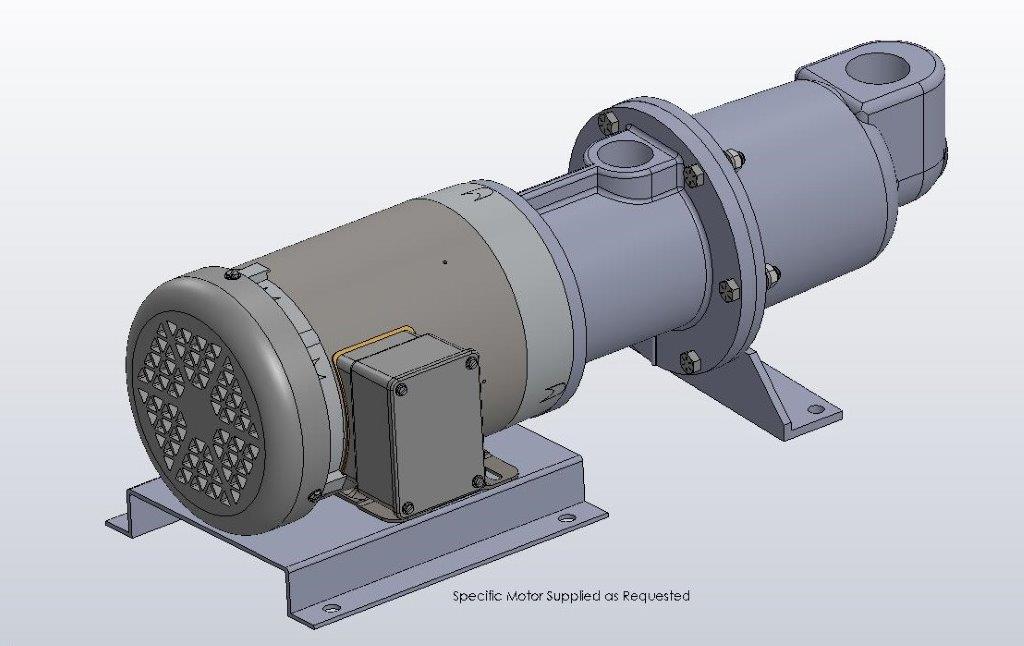

CPML56 Progressive Cavity Pump

Model CP Pumps are great for low GPM and viscosity applications and can pump many different types of materials. It’s a low cost pump that is compact and has many drive options.

Continental CP Model pumps and parts are interchangeable with many progressing cavity pump brands.

Need a complete unit on an inline base, a v-belt base or as a hydraulic unit?  Contact us.











Pumps:

Pump ModelYour PricePump Description
CPML56-CSBMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, EDPM elastomers, Mechanical Seal, Threaded flex joint and connections with 3 phase motor of your choice
CPML56-CSFMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, Viton elastomers, Mechanical seal, Threaded flex joint and connections with 3 phase motor of your choice
CPML56-CSQMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical cast iron hsg, Stainless steel internals, Buna elastomers, Mechanical Seal, Threaded flex joint and connections with 3 phase motor of your choice
CPML56-SSBMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical stainless steel hsg, Stainless steel internals, EPDM elastomers, Mechanical seal, Threaded flex joint and connections with 3 phase motor of your choice
CPML56-SSFMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical stainless steel hsg, Stainless steel internals, Viton elastomers, Mechanical seal, Threaded flex joint and connections with 3 phase motor of your choice
CPML56-SSQMTV*1-1/2-3 CALL FOR PRICE CONTINENTAL PUMP-Vertical stainless steel hsg, Stainless steel internals, Buna elastomers, Mechanical seal, Threaded flex joint and connections with 3 phase motor of your choice

Net Adders:

Pump ModelBase Price Viton Stainless Steel 1140 RPM Explosion Proof 50 Hz 90v DC Inverter Duty
CPML56-CSBMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
CPML56-CSFMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
CPML56-CSQMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
CPML56-SSBMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
CPML56-SSFMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
CPML56-SSQMTV*1-1/2-3 CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE CALL FOR PRICE
Pump Frame Size: CPML56 Inlet Suction Size: 1 1/2 in. NPT
Outlet Discharge Size: 1 1/4 in. NPT Body Casting Material Options Cast Iron, Stainless Steel
Pump Rotor Material: Chrome Plated Stainless Steel Stator Material Options: Buna Nitrile, EPDM, Viton
Seal Material Options: Mechanical Pump Motor Options: Varies
Flowrate: 4.1 - 24.0 GPM Pressure: 0 - 50 PSI
Weights: 85 lbs
  • Only One Moving Part
  • Low Cost
  • Compact
  • Small Mounting “Foot Print”
  • Light Duty Applications
  • Various Motor and Drive Combinations

More Dimensions and Weights information can also be found on the CP Progressing Cavity Pump page in the Resources area.
